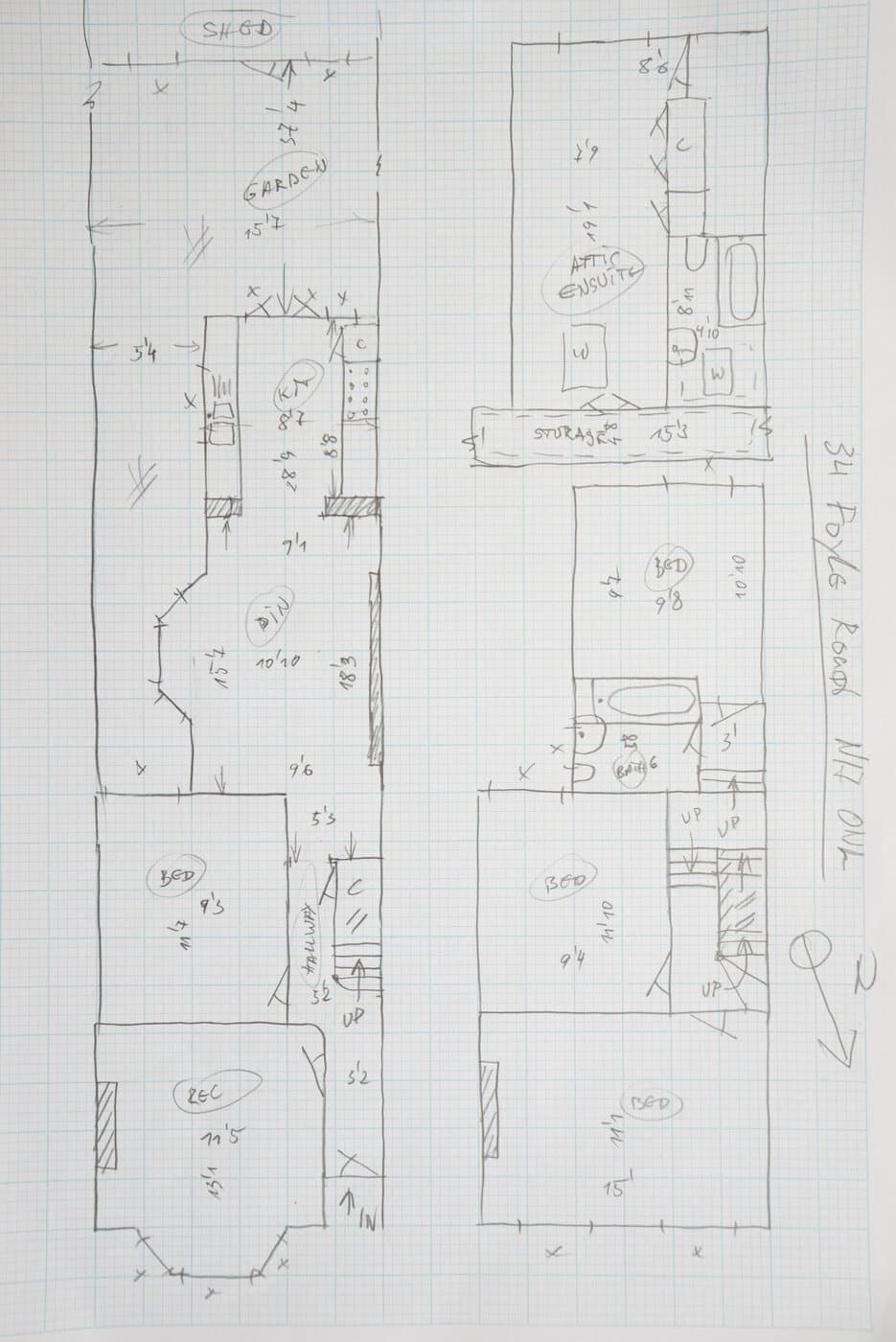

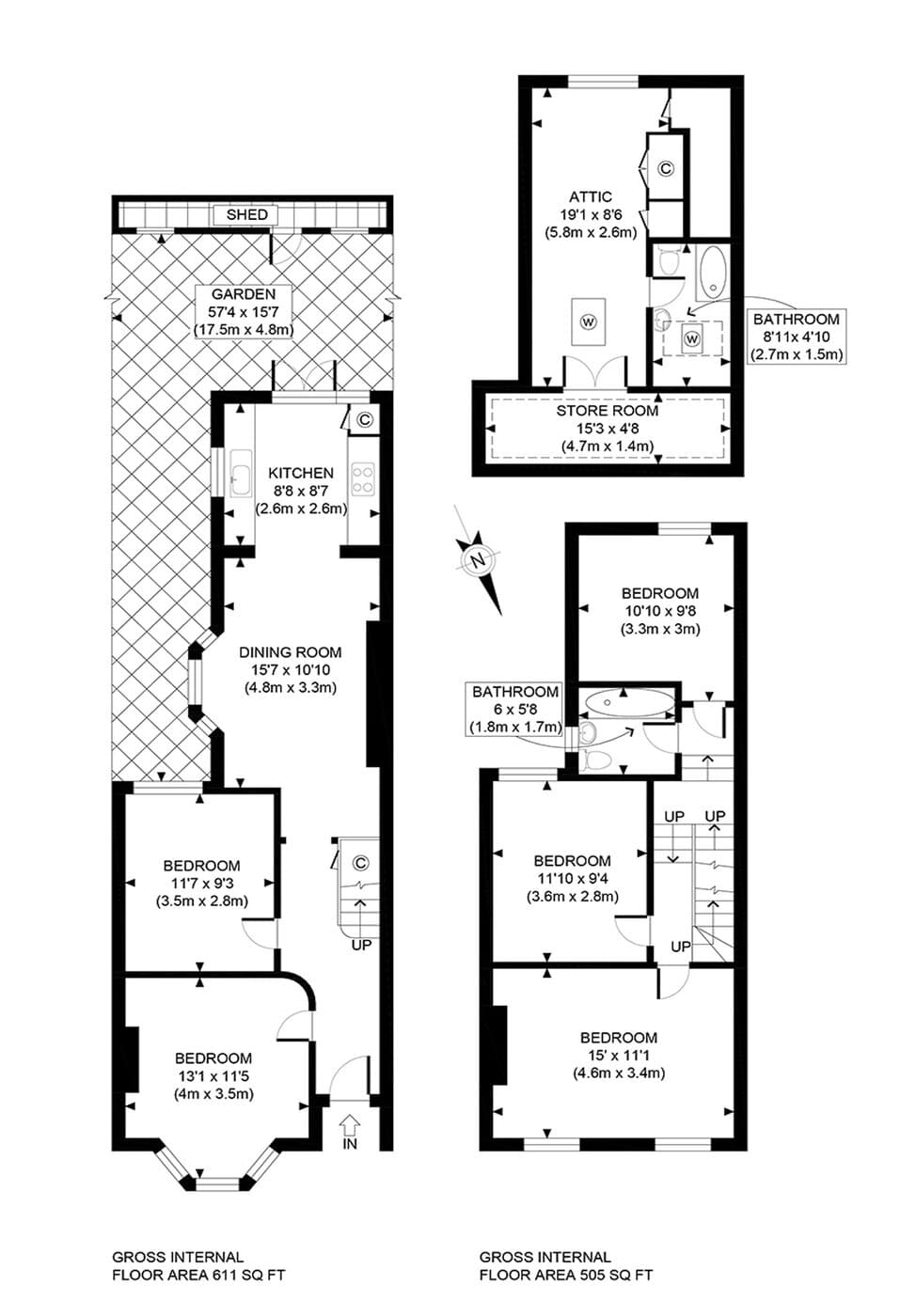

Three-storey terraced house
A hand-drawn sketch of a terraced house with ground floor, first floor and attic, redrawn as a clean three-level plan with room dimensions.
Examples
From sketch to finished floor plan
Real before-and-after examples. On the left is a customer's hand-drawn sketch; on the right is the clean, professional floor plan our team redraws from it. Click either image to enlarge it.
Order on sketchplan.rehub.studio · see how it works
Two-bedroom flat
Graph-paper measurements converted into a colour-coded floor plan with reception/kitchen, two bedrooms and bathroom.

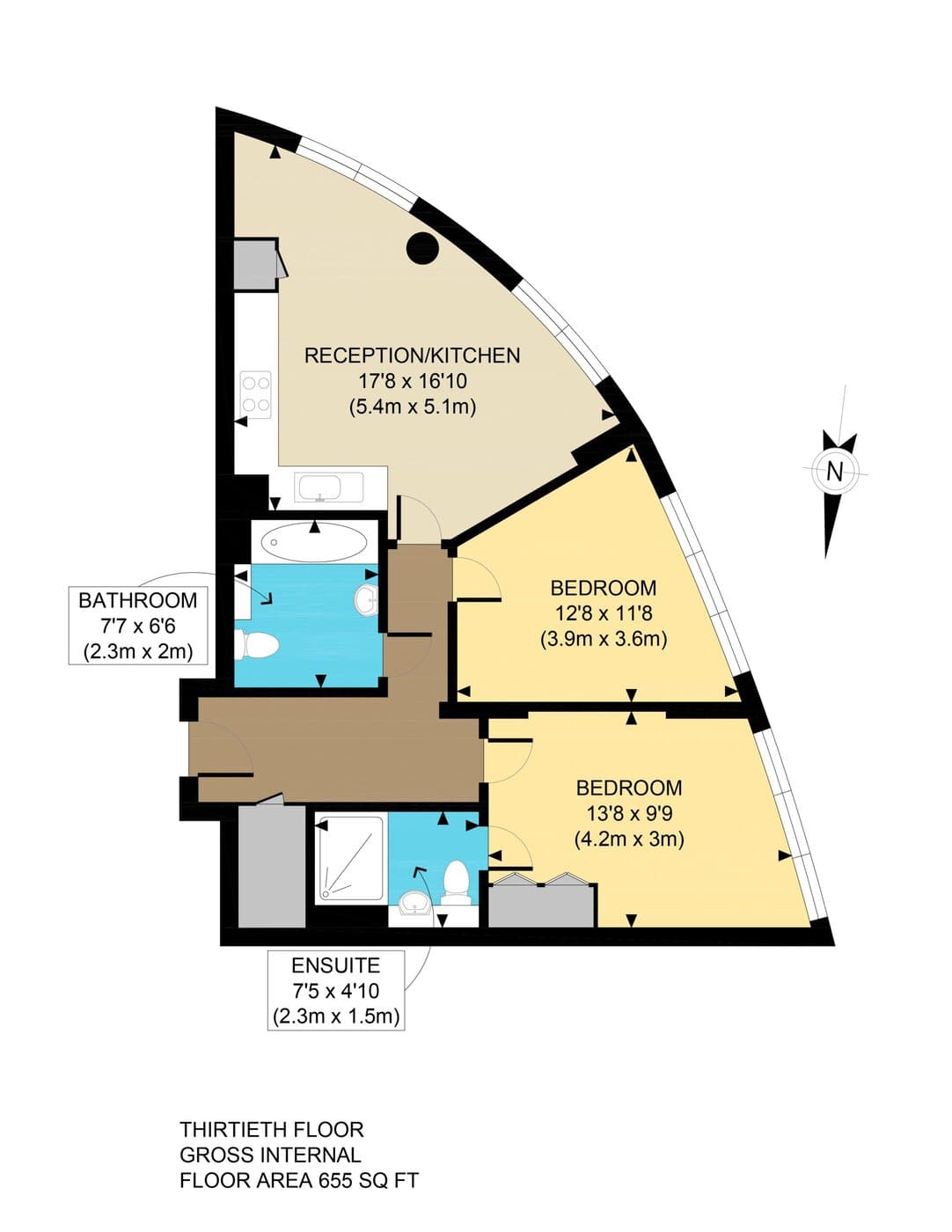

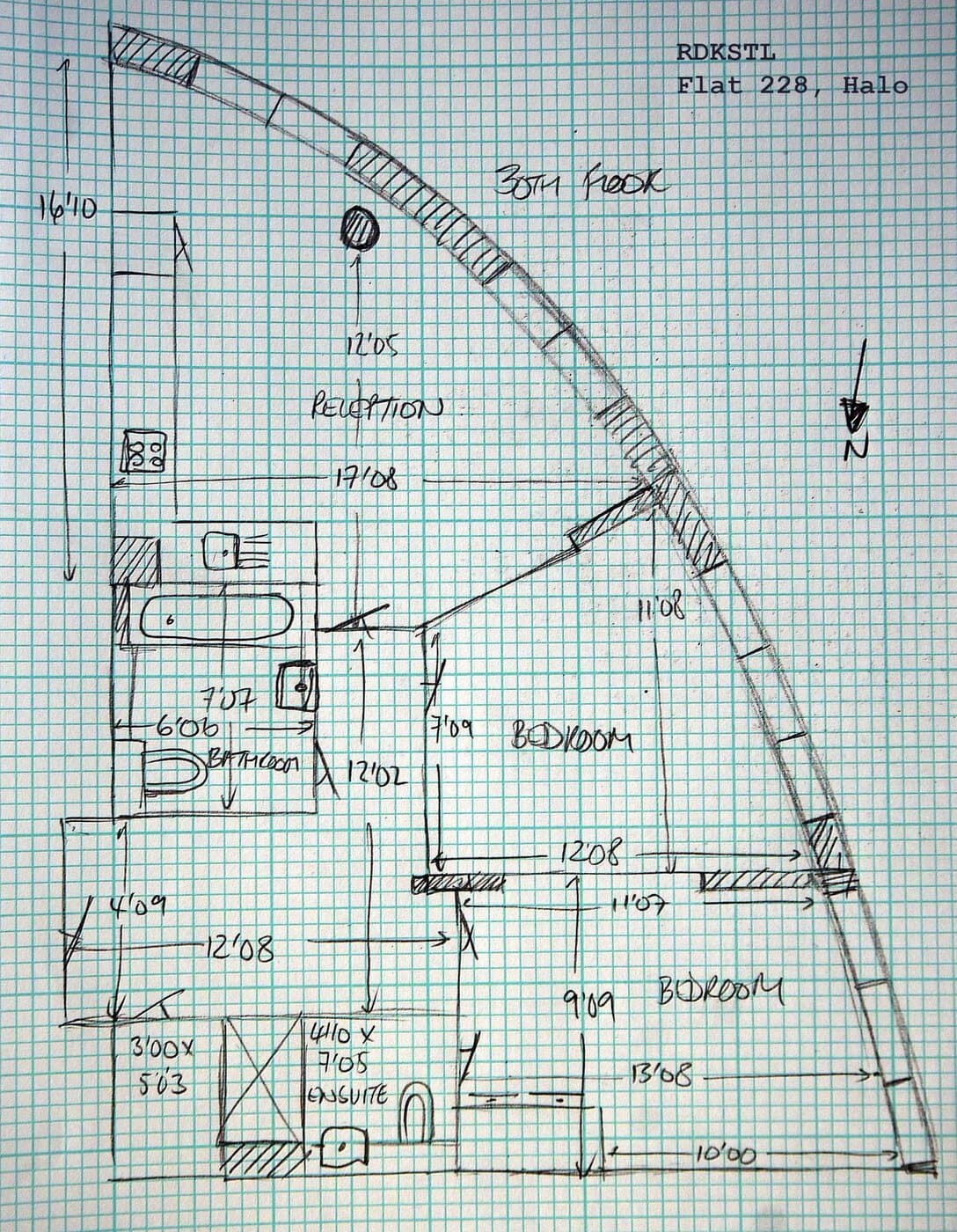

Curved high-rise apartment
A 35th-floor apartment with a curved external wall, sketched freehand and turned into a precise, presentation-ready plan for the listing.

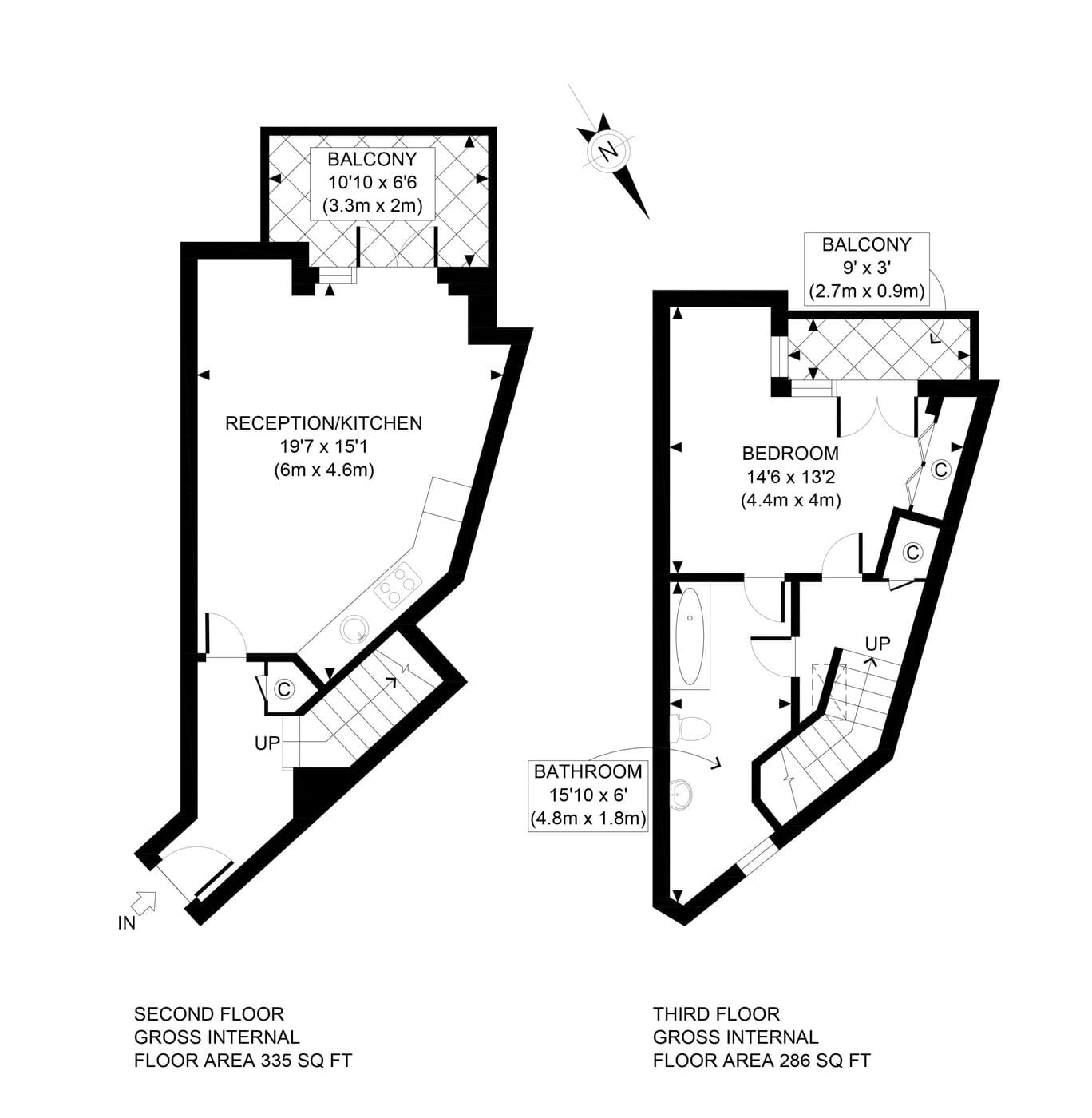

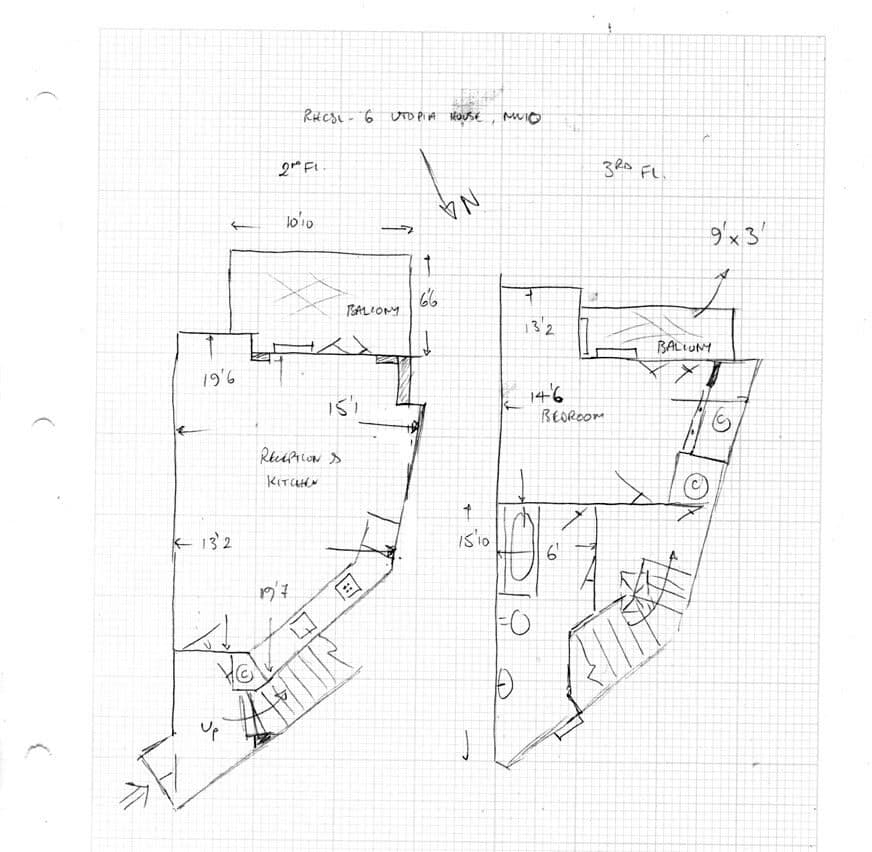

Split-level apartment
A two-level layout labelled 2nd and 3rd floor, with angled walls and balconies, redrawn cleanly across both levels.
Note on accuracy
Your plan reflects your measurements
We draw exactly what your sketch and measurements describe. The clearer and more accurate your notes, the closer the finished plan will be to the property.
Turn your sketch into a professional floor plan
Upload a hand-drawn sketch, measured notes, an old floor plan or a rough layout and our team will redraw it into a clean, professional floor plan.
